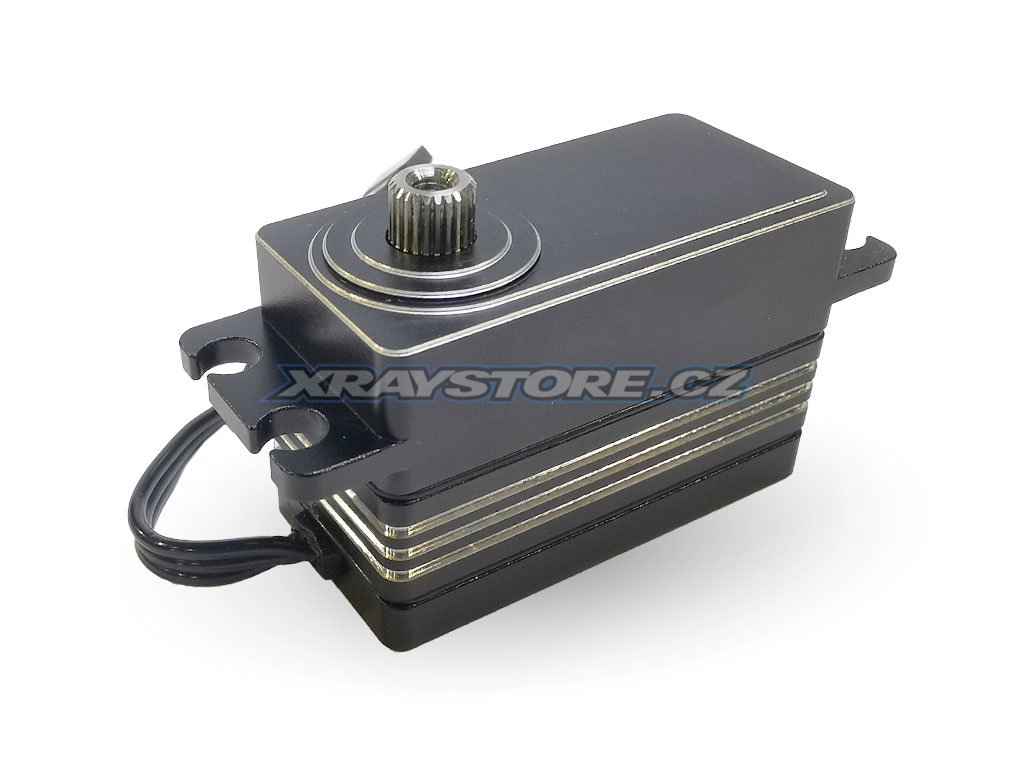

Monkey racing B16L - HV brushless low profile servo

Detailní popis produktu

Monkey racing B16L - HV brushless low profile servo (0.050sec/16kg/8.4V)

Products Specification:

Motor: brushless

Type: digital

Bearing: dual

Gear Type: metal

Gear Material: 303 steel & 7015 alu

Control System: pulse width control

Working Frequence: 1520μs / 330hz

Operating Voltage: DC 6.0-8.4V

Operating Temperature Range: -10 to +60 degree

Operating Speed (6.0v): 0.065 sec/60 degrees at no load

Operating Speed (7.4v): 0.055 sec/60 degrees at no load

Operating Speed (8.4v): 0.050 sec/60 degrees at no load

Stall Torque (6.0v): 11.0kg.cm (138.8 oz/in)

Stall Torque (7.4v): 14.0kg.cm (180.5 oz/in)

Stall Torque (8.4v): 16.0kg.cm (208.3 oz/in)

Potentiometer drive: Direct drive

Dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in

Weight: 52.0g (1.83 oz)

Connector Wire Length: JR 70 mm
