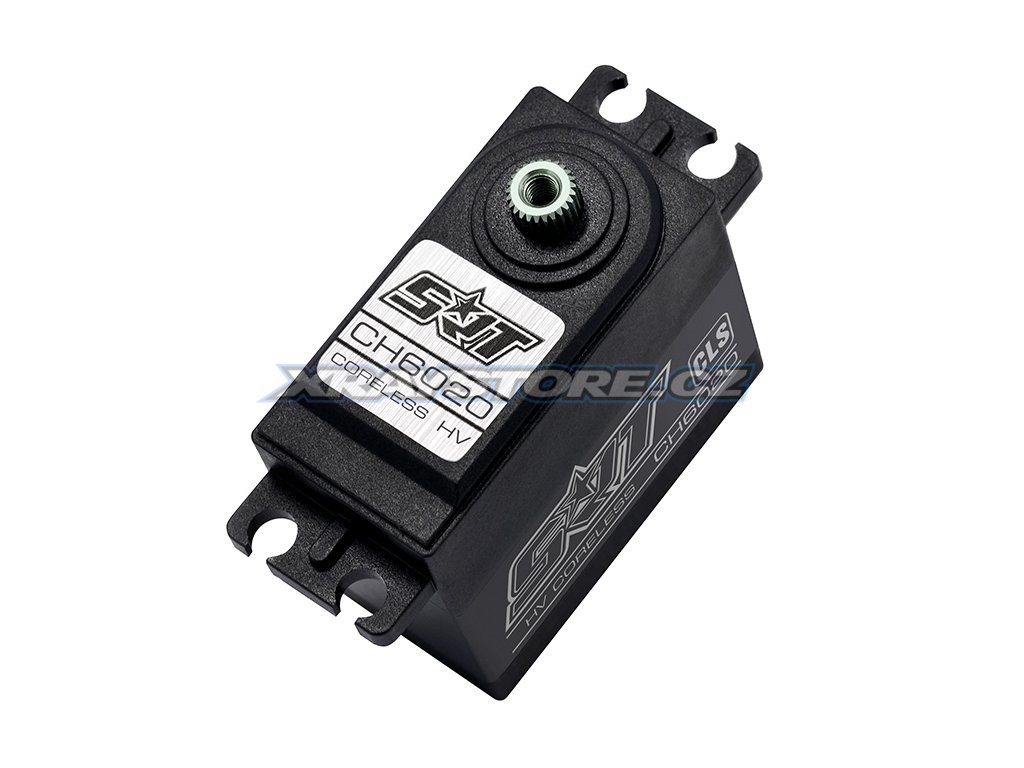

CH6020 HiVOLT CORELESS Digital servo (20kg-0.09s/60°)

Product detailed description

SRT CH6020 (0.09s/20.0kg/8.4V) Coreless Servo

Application :
1/8 Electric/ Car         1/8 Nitro/ Car                1/8  2 4WD /Off-road
1/8 /Off-road             1/8 /Off-road                1/8 Off-road
600 700/ Helicopter


PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.10 sec/60 degrees at no load
operating speed (8.4v): 0.09 sec/60 degrees at no load
stall torque (6.0v): 14.0kg.cm (194.4 oz/in)
stall torque (7.4v): 18.0kg.cm (250.0 oz/in)
stall torque (8.4v): 20.0kg.cm (277.7 oz/in)
potentiometer drive: direct drive
dimensions: 40.7x20.5x38.5 mm /1.6x0.8x1.51 in
weight: 65.0g (2.29 oz)
connector wire length: jr 250 mm
